3MO NTV 650 Nm Transaxle Sequential Transmission Specifications

3MO NTV TRANSAXLE SEQUENTIAL TRANSMISSION

Torque 650 Nm / 480 lb-ft

TX 650 Drop Gear 6 Speed Endurance

OVERVIEW

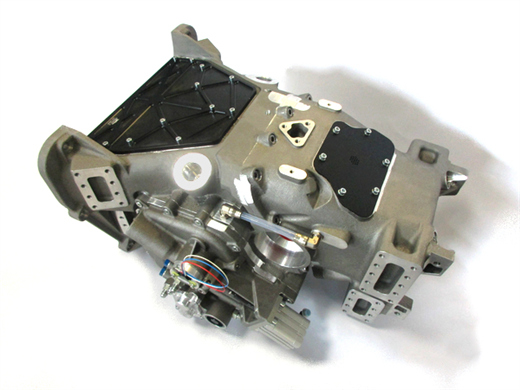

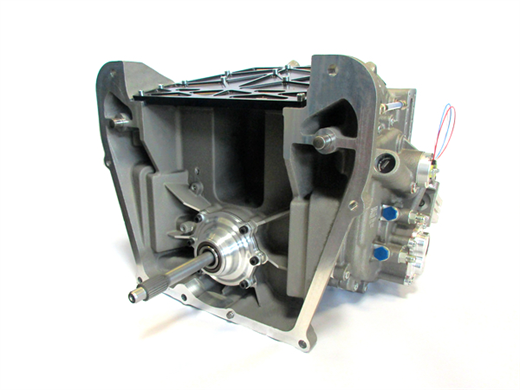

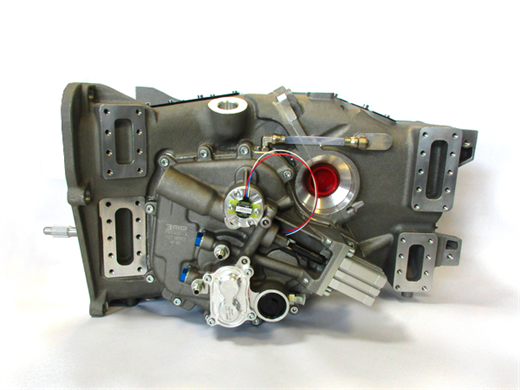

The 3MO NTV 650 Nm Transaxle Sequential Transmission has been designed for Sports Car GT – LMP type endurance racing in longitudinally mounted mid-engine race cars.  The 6 Speed Sequential Gearbox has been in production since 2018 and run in class racing like the Liger JPS4 which run Ford Cyclone 385hp V6 engines in LMP type race cars weighing 920kg / 2024 lb.

The versatile transmission has a wide range of gear 35 gear ratios and to ensure there’s a right ratio for every situation. In addtion there is a Quick change drop gear system (overall reduction) system to optimose the ratios for a given track. This 3MO NTV gearbox with upgrdaed materials can handle 650 Nm / 480 lb-ft comfortably in endurance racing conditions.

This Transaxle uses a TFJ Self Locking Differential with a 3 + 3 disc system and a range of ramp angles to suit customer needs. There are 3 inspection ports to allow for easy checking of the Dog Rings without disassembly of the gearbox saving time.

APPLICATIONS

Circuit – Road Racing

BENEFITS

Reliability – Wide Range of Ratios – Quick Change Drop Gears

GEARBOX IN ACTION



SPECIFICATIONS

  • 6 Speed Sequential Transaxle Transmission with straight cut and dog engaged gears
  • Maximum engine torque 650 Nm / 480 lb-ft
  • 89mm / 3.5″ shaft centreline
  • 20mm / 0.787″ gear tooth width (1st to 3rd) & 17mm / 0.669″ (4th to 6th)
  • Gear Ratio options

        – 3 quick change constant drive ratios
        – 35 gear ratios

  • Step up conical drive (input) – transverse cluster layout
  • TFJ self locking differential  with 3 + 3 disc system and many ramp angles
    • Planet gear support cross
    • Bevel gear guided
    • Cluster removable
    • Preload adjustment without disassembly
  • Input shaft length and spline to suit customer needs
  • Selection of bellhousings for many of the popular engines

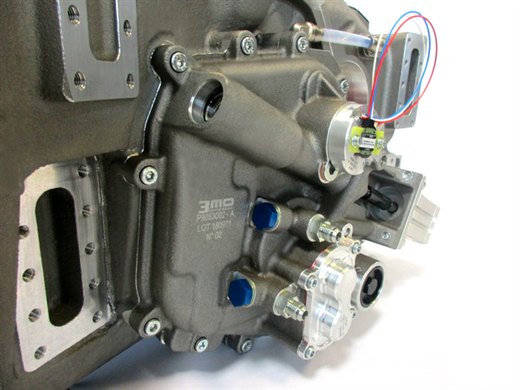

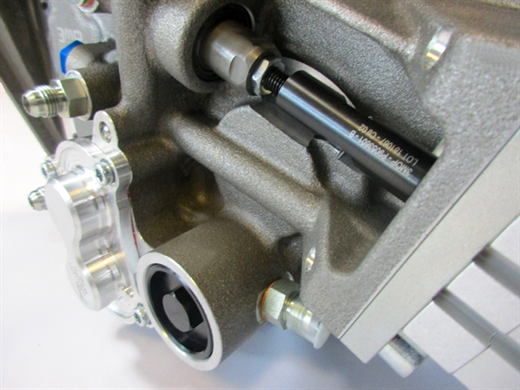

  • Internal oil pump and lubrication system with steel filter
  • 3 Dog Ring inspection ports
  • 0-5V gear position sensor
  • Lock out cable for reverse
  • Weight: 85kg / 187lb

RATIOS

Final Drive RatiosGear RatiosGear Position
TeethRatioTeethRatio1st2nd3rd4th5th6th
 9 x 303.33312 x 393.250
9 x 343.77812 x 373.083
9 x 353.88912 x 352.917
  13 x 342.615
  14 x 362.571
  15 x 362.400
  13 x 312.385
  14 x 332.357
  13 x 302.308
  14 x 322.286
  13 x 292.231
  14 x 302.143
  15 x 322.133
  14 x 292.071
  16 x 322.000
  17 x 331.941
  15 x 291.933
  17 x 321.882
  17 x 311.824
  15 x 271.800
  17 x 301.765
  18 x 311.722
  17 x 291.706
  18 x 291.611
  16 x 322.000
  15 x 291.933
  15 x 271.800
  18 x 311.722
  16 x 271.688
  17 x 281.647
  18 x 291.611
  17 x 271.588
  17 x 261.529
  18 x 271.500
  17 x 251.471
  18 x 261.444
  19 x 271.421
  18 x 251.389
  20 x 271.350
  19 x 251.316
  21 x 271.286
  21 x261.238
  22 x 271.227
  19 x 231.211
  21 x 251.190
  20 x 231.150
  23 x 261.130
  20 x 221.100
  21 x 231.095
  28 x 301.071
  28 x 291.036
  23 x 231.000
  25 x 240.960
  32 x 300.938
  23 x 190.826

ACCESSORIES

Transaxle sequential transmission parts & accessories

  • Bell Housings and Adaptor Plates
  • Gear Lever
  • Shift Cut Knob for Gear Lever
  • Paddle Shift Solutions
  • Breather Kit
  • Programmable Gear Position Display
  • 52mm hydraulic clutch release bearing + feeder hoses

NOTES

  • A minimum 0.7″ master cylinder can be installed on your original clutch pedal setup.
  • An adjustable clutch pedal stop is needed as the hydraulic release bearing does not have an output stop.
  • Depending on your application an oil cooler may be recommended.  A 13 row cooler measuring 210 x 98 x 50mm with AN6 inlet / outlet fittings will work well.
  • Must use 85w140 Mineral lubricant
  • Oil Capacity is 3.5 Litres / 3.6 Quarts  excluding lines and cooler
Download Dimensions
